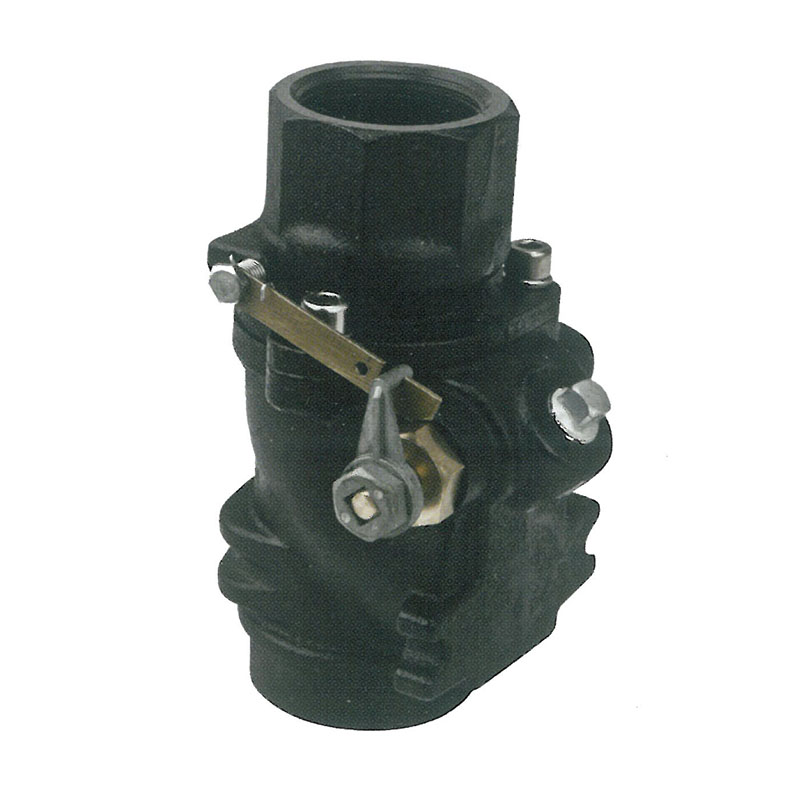

The shear off valve is the reliable protection device of the submerged pump fuel dispenser, it uses metable material(melting point 70℃) and cut off ring, when there has fire or the fuel dispenser is bumped and damaged , the valve core can seal off automatically, and the oil flow of the pipeline will be cut off, so that the danger is prevented.
| Model Number | CDI-DA16 |
| Inlet Size |
1.5' |
|
Material |
Cast Iron |
| Application Media |
gasoline, kerosene, diesel |
|
Working Pressure |
0.2 Mpa |
| Temperature | 19 kgs/20 kgs (1.5') |
| Valve closing speed | 0.5 S |
