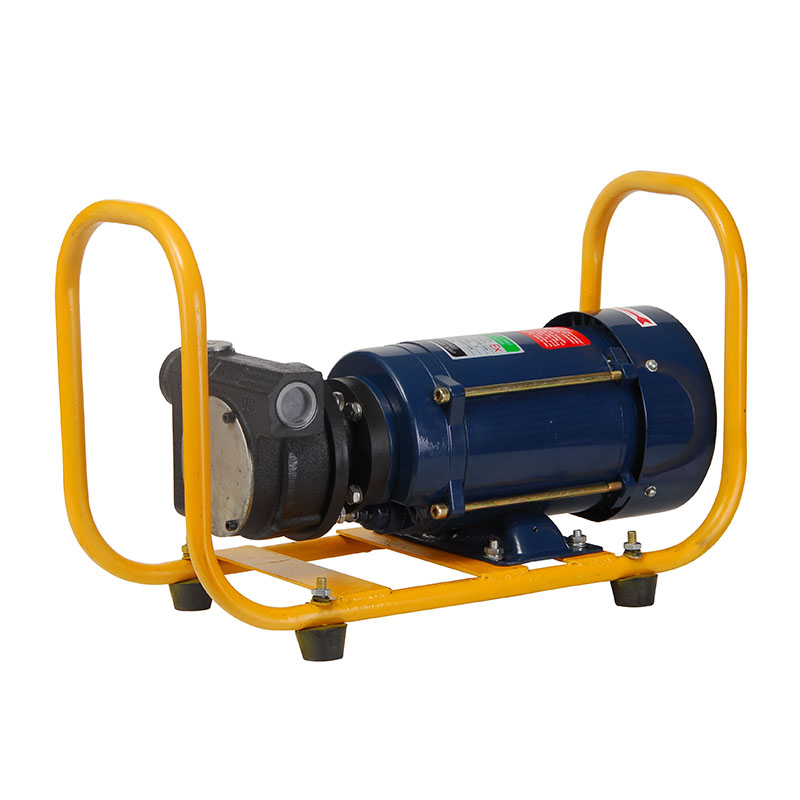

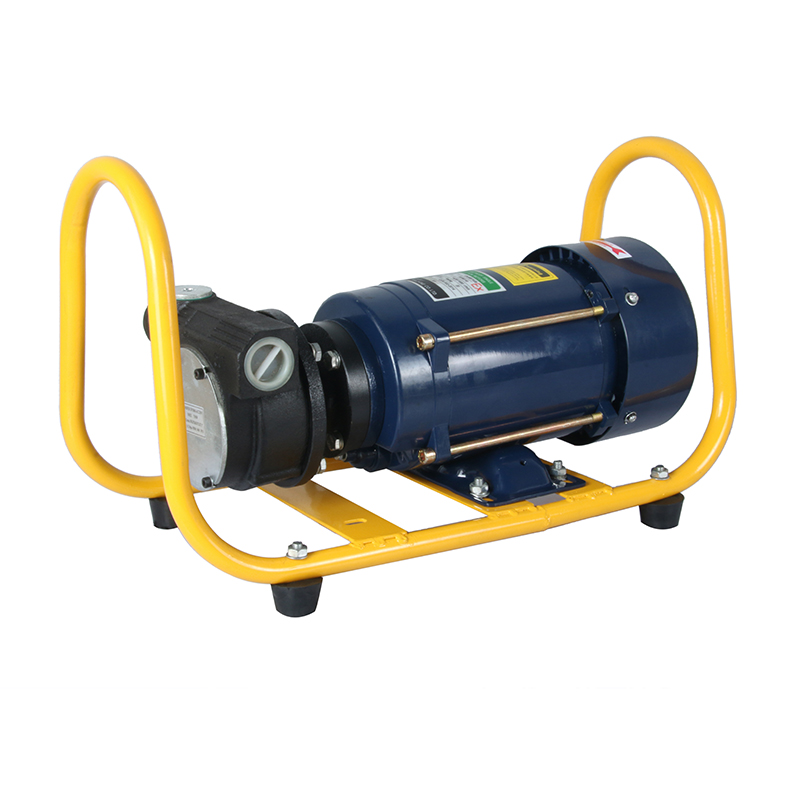

DYB-60A ex pump is compatible with petrol/gasoline, diesel, gasoline, stoddard solvent, mineral spirits. With explosion proof permanent magnet motor, as well as thermal overload protection, this pump wins popularity in good material quality(brone rotor, carbon vane, check valve). What's more, 80 lpm big flow shows excellence User experience.
a. Cast Iron body, with 100% bronze rotor and carbon vanes
b. Both Flange and Swivel Connection
c. Ex- proof atex motor 1HP, gets thermal overload protection
| Model Number | CDI-P17 |
|
Inlet Size |
1' |
|
Voltage |
220v |
| Flowrate | 80 lpm |
| Application Media |
gasoline, kerosene, diesel, mineral spirits |
| Power |
1 HP |
|
Working Pressure |
0.1-0.2 Mpa |
| Motor Speed |
1420-1680 rpm |
| Package |
1 pc /carton |
